Heavy H Section Steel

Heavy H Section Steel for Heavy-Duty Structural Applications

Heavy H Section Steel is specifically designed for projects that require exceptional load-bearing capacity, long-span performance, and structural stability. Compared with standard H beams, heavy H sections feature thicker webs and flanges, allowing them to withstand greater static and dynamic loads while maintaining excellent rigidity.

TJMC Steel supplies high-quality heavy H section steel manufactured to international standards for use in industrial plants, bridges, heavy machinery foundations, ports, mining facilities, and large-scale infrastructure projects. Available in multiple sizes, steel grades, and customized lengths, our heavy structural H beams are trusted by contractors, fabricators, and engineering companies worldwide.

Whether you require European, American, or Chinese standard H beams, our experienced team can recommend the most suitable solution based on your structural design and project requirements.

Why Choose Heavy H Section Steel?

Heavy H section steel is engineered for demanding structural environments where ordinary H beams may not provide sufficient strength or rigidity.

Compared with conventional structural sections, heavy H beams offer several important advantages:

• Higher load-bearing capacity for heavy structural applications

• Increased flange and web thickness for improved stability

• Excellent resistance to bending and torsion

• Suitable for long-span steel structures

• High welding and fabrication efficiency

• Reduced structural deformation under heavy loads

• Compatible with international structural steel standards

These benefits make heavy H section steel an ideal choice for projects requiring reliable structural performance and long service life.

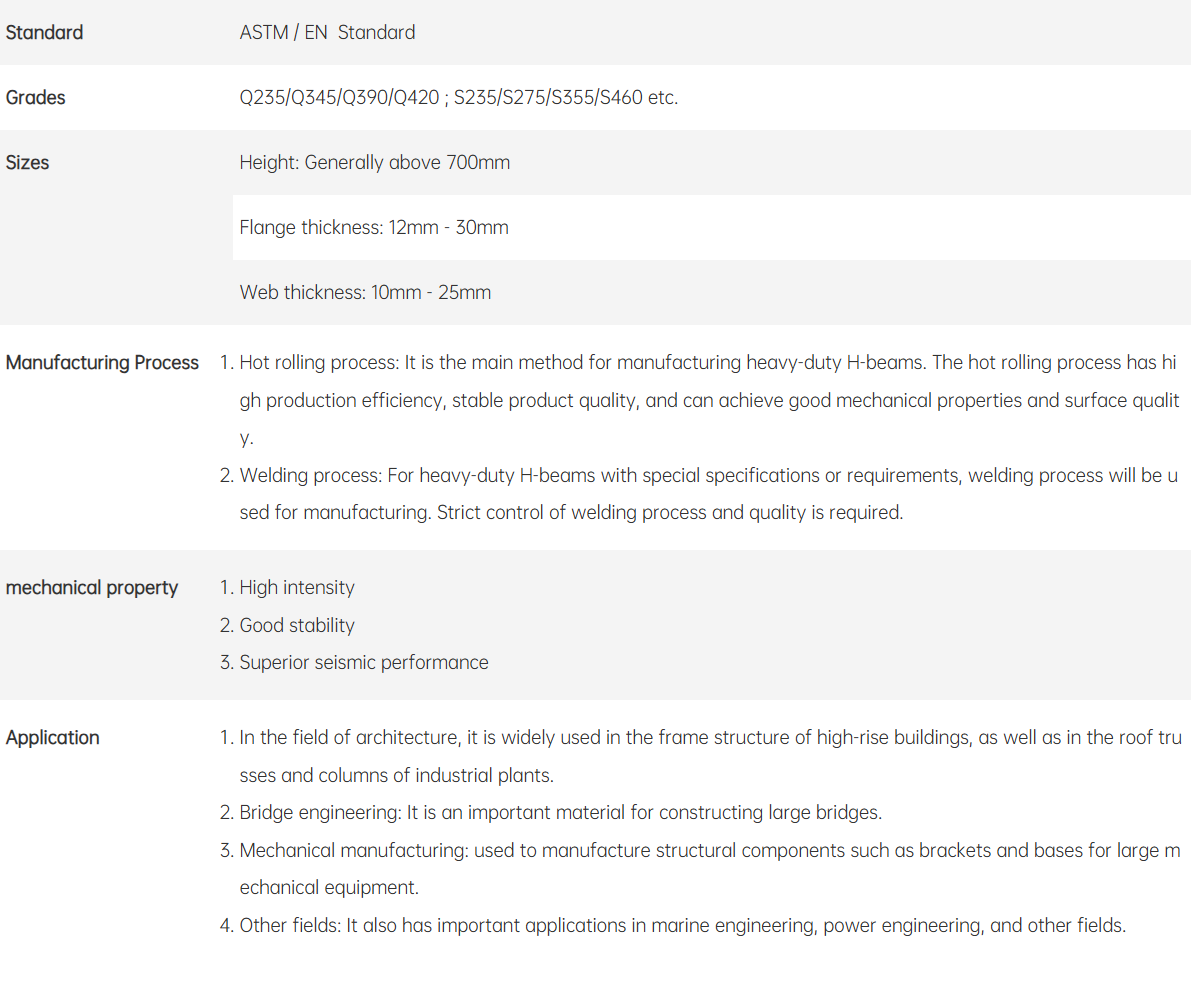

Available Specifications

TJMC Steel supplies heavy H section steel in a wide range of specifications to meet diverse engineering requirements.

Typical Size Range

• Height: 200–900 mm

• Flange Width: 200–400 mm

• Web Thickness: 8–30 mm

• Flange Thickness: 12–40 mm

• Length: 6 m, 9 m, 12 m, or customized

Material Grades

• S235JR (Internal Link – S235JR Steel Page)

• S355JR (Internal Link – S355JR Steel Page)

• ASTM A36

• ASTM A572 Grade 50

• Q235B

• Q355B

Standards

• EN 10025

• ASTM

• JIS

• GB/T 11263

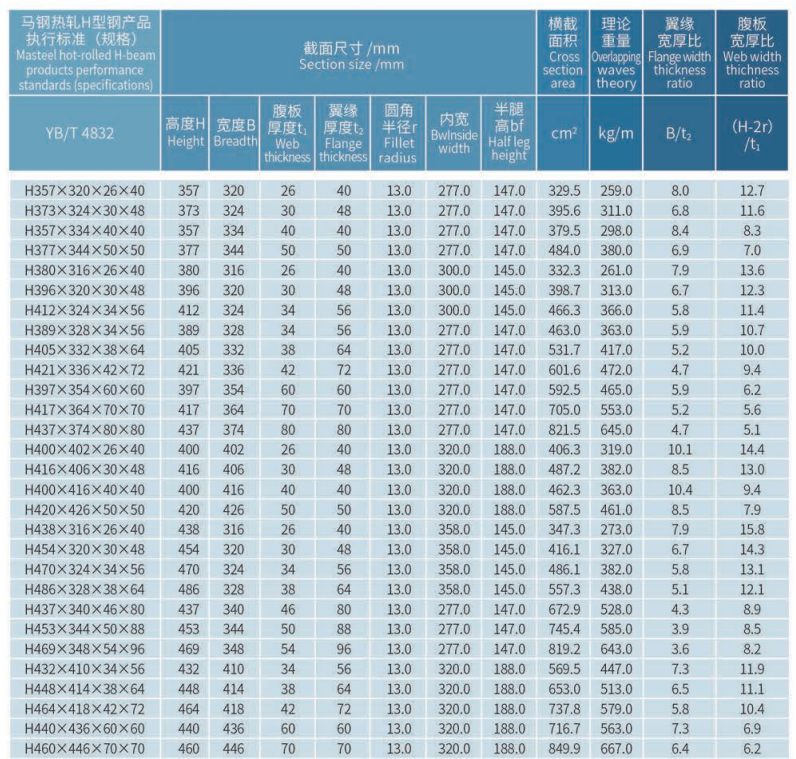

For complete dimensions and theoretical weights, please refer to our H Beam Size Chart .

Heavy H Section Steel vs Standard H Beam

Many buyers ask whether a standard H beam is sufficient or whether a heavy H section is required. The answer depends on the structural load, span length, and project environment.

Heavy H section steel is typically selected for projects involving heavy equipment, high dynamic loads, or long-span structures, where additional structural strength and stability are essential.

Typical Applications

Thanks to their superior mechanical properties, heavy H section steels are widely used in demanding engineering applications.

• Industrial Buildings

  Heavy H beams provide the primary load-bearing framework for manufacturing plants, steel workshops, warehouses, and logistics centers.

• Heavy Machinery Foundations

  Their high rigidity makes them ideal for supporting large industrial equipment, production lines, presses, and mechanical platforms. You may also explore our Heavy H Beams for Heavy Machinery Bases .

• Bridge Construction

  Heavy structural H beams are commonly used in highway bridges, railway bridges, pedestrian bridges, and elevated structures requiring high structural integrity.

• Mining and Energy Projects

  Mining facilities, power stations, and processing plants often require heavy H sections capable of withstanding harsh operating conditions and continuous heavy loading.

• Port and Marine Infrastructure

  Heavy-duty H beams are used in ports, terminals, shipyards, and offshore facilities where corrosion protection and structural reliability are critical.

• For offshore projects, see our H Beam Steel for Offshore Wind Turbines .
