I Beam Dimensions

• Standard I Beam Dimensions Overview

I beams are widely used in structural frameworks, machinery bases, bridges, and support systems where strength-to-weight efficiency is required. In procurement and engineering stages, buyers often need quick access to dimension data before moving forward with commercial discussions. Therefore, this page focuses on I beam size chart and specification reference rather than detailed product introduction.

If you are looking for material grades, production range, surface condition, or export packaging details, you can check our steel I beam supply page for complete information.

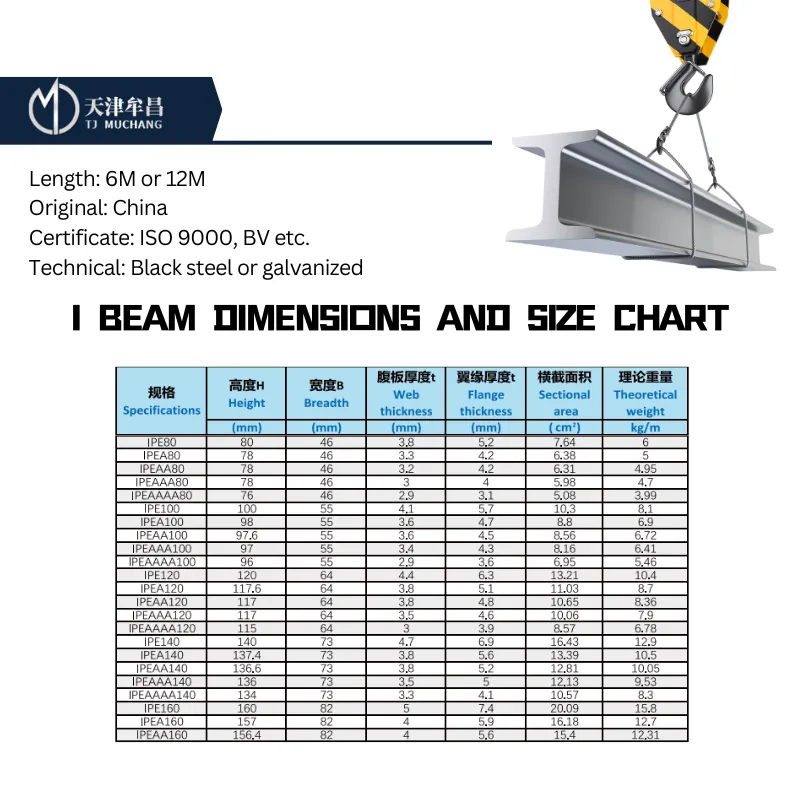

• I Beam Dimensions Chart

• IPE Beams Sizes, and Mechanical Properties

• IPN Beams Sizes, and Mechanical Properties

Notes:

The table above provides general I beam dimension reference for layout and structure demonstration. Actual sizes, tolerance, and weight should be verified according to applicable standards and mill production range.

If you require exact stock availability or project-based supply, please submit your required dimensions through our I beam quotation page for confirmation.

• How to Read I Beam Dimensions

I beam dimensions are typically defined by section height and flange width, with additional parameters such as web thickness and flange thickness used for engineering and procurement decisions. Compared with H beams, I beams usually have narrower flanges and are commonly used in lighter structural applications.

A standard I beam size chart usually includes:

• Section height

• Flange width

• Web thickness

• Flange thickness

• Theoretical weight

• Length range

• Applicable standard

For structural comparison, you may also review the difference between I beam and H beam dimensions in our beam comparison guide to better understand selection criteria.

• Standards and Specification Notes

I beam dimensions may vary depending on different standard systems and regional designation methods. In global steel trade, size references may follow different standards depending on project requirements and destination markets.

When reviewing I beam specifications, it is important to confirm:

• Whether the dimensions are metric or imperial

• Whether the designation belongs to a specific standard system

• Whether required length is standard or custom cut

• Whether the size is within actual mill rolling range

• Whether weight and tolerance meet project specifications




For commercial supply, buyers are advised to confirm dimensions together with grade, quantity, and destination to ensure accurate quotation from a reliable I beam supplier.
