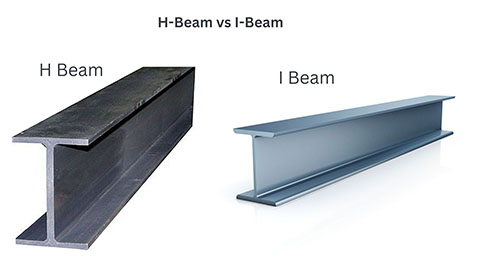

H beam vs I beam

H beams and I beams are two of the most commonly used structural steel sections in construction, infrastructure and industrial projects. Although they may look similar at first glance, their structural design, load-bearing capacity, and typical applications are quite different.

Understanding the difference between H beam and I beam is essential for engineers, contractors, and project owners to ensure structural safety, cost efficiency, and long-term performance—especially in large-scale projects such as steel structure buildings, bridges, warehouses, and EPC construction projects.

This guide explains H beam vs I beam in detail, covering structure, strength, standards, applications, and how to choose the right steel beam for your project.

 I. What is an H beam？

An H beam (W-beam) is a structural steel section with a wide flange and a cross-section shape similar to the letter "H". The flange width is nearly equal to the beam height, which provides excellent load distribution and stability.

Key Characteristics of H Beams

 ★ Wide and thick flange

 ★ Uniform cross-section

 ★ Strong load-bearing capacity

 ★ Suitable for heavy loads and long span

 ★ Commonly hot rolled or welded

H beams are widely used in modern steel structure projects where high strength and stability are required.

II. What is an I beam？

An I beam (S-beam), also known as a universal beam or rolled steel joist in some regions, has a cross-section shaped like the letter “I”. The flange width is narrower compared to the beam height, making it lighter than an H beam.

Key Characteristics of I Beams

 ★ Narrower flanges

 ★ Lighter weight compared to H beams

 ★ Efficient for vertical load support

 ★ Cost-effective for smaller spans

 ★ Common in traditional construction projects

I beams are widely used in residential buildings, small industrial structures, and secondary load-bearing components.

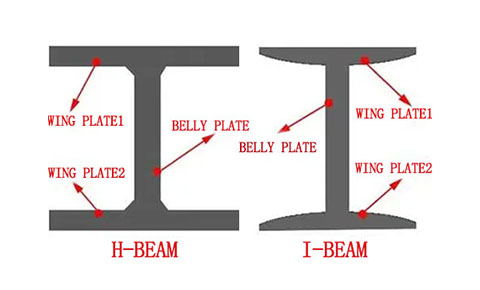

III. H Beam vs I Beam: Structural Differences

The wider flanges of H beams provide better resistance to bending and torsion, making them suitable for heavy-duty structural applications.

IV. Load-Bearing Capacity: H Beam vs I Beam

One of the most important differences between H beams and I beams is their load-bearing capacity.

 ★ H beams can support heavier loads and are suitable for large spans due to their wide flange design.

 ★ I beams are optimized for vertical loads but have lower resistance to lateral forces and torsion.

For projects involving heavy equipment, multiple floors, or large open spaces, H beams are usually the preferred choice.

V. Standards and Grades for H Beams and I Beams

Both H beams and I beams are produced according to international standards, including:

 ★ ASTM standards (ASTM A36, ASTM A572, ASTM A992)

 ★ EN standards (EN 10025 series)

 ★ JIS standards (JIS G3101, JIS G3106)

Common steel grades include:

 ★ S235, S275, S355 (EN standards)

 ★ Q235, Q345 (China standards)

 ★ A36, A572 (ASTM standards)

The choice of grade depends on structural requirements, load conditions, and local project specifications.

VI. Applications of H Beams

H beams are widely used in heavy-duty and large-scale projects, such as:

 ★ Steel structure buildings

 ★ Industrial plants and factories

 ★ Warehouses and logistics centers

 ★ Bridges and infrastructure projects

 ★ Power plants and refineries

 ★ EPC and government construction projects

Their high strength and stability make them ideal for projects in hot climate regions such as the Middle East and Africa.

VII. Applications of I Beams

I beams are commonly used in lighter structural applications, including:

  ★ Residential buildings

  ★ Commercial buildings

  ★ Small industrial structures

  ★ Floor beams and secondary supports

  ★ Roofing structures

  ★ They are often chosen when cost control and reduced structural weight are important considerations.

In international construction projects, consistent material quality, accurate specifications, and reliable delivery schedules are critical.

Steel beam suppliers with long-term cooperation with qualified mills and extensive export experience can better support project timelines, documentation requirements, and quality assurance for global markets.

VIII. How to Choose Between H Beam and I Beam

When selecting between an H beam and an I beam, consider the following factors:

1. Load requirements – Heavy loads and long spans usually require H beams.

2. Structural design – Multi-story or open-span structures benefit from H beams.

3. Project budget – I beams are more cost-effective for smaller projects.

4. Installation conditions – I beams are easier to handle and install due to lower weight.

5. Local standards and codes – Always comply with project specifications and regional standards.

Consulting with structural engineers is recommended for critical load-bearing projects.

For large-scale construction and infrastructure projects, the selection of H beams or I beams is closely related to structural safety and long-term performance.

Experienced steel suppliers with stable production resources, strict quality control, and familiarity with international standards can provide more reliable material solutions for EPC contractors and engineering companies, especially for overseas projects with complex requirements.

IX. H Beam vs I Beam: Which Is Better?

There is no universal answer to which beam is better—it depends on the project requirements.

 ★ Choose H beams for heavy-duty, large-span, and high-stability structures.

 ★ Choose I beams for lighter loads, shorter spans, and cost-sensitive projects.

Selecting the right beam ensures safety, durability, and long-term performance of the structure.

X. FAQ: H Beam vs I Beam

Q1: Is an H beam stronger than an I beam?

Yes, H beams generally have higher load-bearing capacity due to wider flanges and thicker web sections.

Q2: Are H beams more expensive than I beams?

H beams usually cost more due to higher material usage, but they can reduce the number of beams required in large projects.

Q3: Can I beams be used in steel structure buildings?

Yes, I beams are commonly used as secondary beams or floor beams in steel structure buildings.

Q4: Which beam is better for hot climate regions?

H beams are often preferred due to better stability and performance under heavy loads.

XI. Conclusion

Understanding the differences between H beam vs I beam is essential for selecting the right structural steel solution. By evaluating load requirements, structural design, and project conditions, you can choose the most suitable beam type for your construction project.

If you are unsure which type of steel is more suitable, you can consult us.

For international construction, infrastructure, and EPC projects, selecting high-quality steel beams that meet international standards is critical to project success.
