Steel Pipe Dimensions Overview
Steel pipes are used across a wide range of industries, including structural engineering, fluid transportation, oil and gas pipelines, and precision mechanical systems. Since different applications require different production methods and standards, pipe dimensions are often checked before confirming material and sourcing details.
This page focuses on dimension reference and size comparison. For detailed supply information, you can visit our steel pipe product pages based on specific manufacturing types.

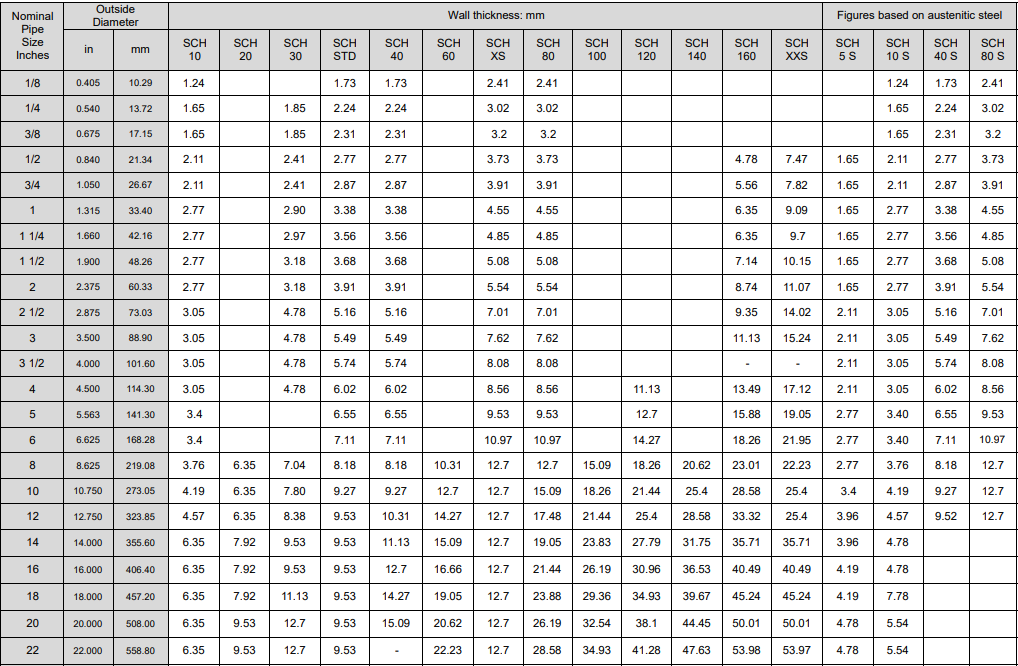

Below is the essential reference chart for NPS, DN, Actual OD, and Schedule 40 wall thickness. For product specifications and available grades, see our seamless pipes and welded & ERW pipes product pages.
(Optimized for: steel pipe size chart, steel pipe dimensions chart, steel pipe sizes and dimensions)
Notes:
The table above provides general steel pipe dimensions for reference. Actual size range, tolerance, and weight depend on production method and applicable standard.
If you require exact specifications or stock availability, please submit your required dimensions through our pipe quotation page for confirmation.
Steel pipe dimensions are typically defined by outside diameter (OD) and wall thickness, rather than inner diameter. In many international standards, pipe thickness is also expressed using schedule numbers such as SCH 10, SCH 40, and SCH 80.
A standard pipe size chart usually includes:
Outside diameter (OD)
Wall thickness
Schedule (SCH)
Length
Weight per meter
Different production methods may affect dimension tolerance and application range. For example, you can compare dimension usage across seamless steel pipe and ERW steel tube depending on pressure and structural requirements.
Example: A drawing specifies DN 80.
Steps:
Find DN 80 → matched to NPS 3
Verify actual OD → 3.500″ (88.9 mm)
Confirm fittings and clamps based on actual OD, not nominal size
Never convert DN to inches using 25.4.
Nominal values do not equal physical measurements.
A pipe’s Schedule (Sch 10, 40, 80, 160) is not a specific thickness.
It is a pressure-capability classification.
As diameter increases, wall thickness must increase to maintain pressure resistance.
Example:
1″ Sch 40 → 0.133″ wall
10″ Sch 40 → 0.365″ wall
Same Schedule, completely different thickness.
Standards and Specification Notes
Steel pipe dimensions may vary depending on different standards and application fields. Pipes used in construction, oil and gas, and mechanical processing may follow different specification systems.
When reviewing pipe dimensions, buyers should confirm:
Whether OD and thickness match project requirements
Whether schedule system is used
Whether the pipe is seamless or welded
Whether length is standard or custom cut
Whether coating or surface treatment is required
For pipeline and energy projects, dimension requirements are often linked with pressure ratings, where line pipe specifications should be carefully reviewed before procurement.
Different applications require different types of steel pipes:
For high-pressure or critical systems, dimensions are often selected from seamless steel pipe standards
For structural and general use, ERW steel tubeis widely used
For corrosion resistance, galvanized steel tube is preferred
For oil & gas transportation, line pipe is required
For precision mechanical systems, honed tube is commonly used
Each product type may follow slightly different dimensional tolerances and standards, so it is recommended to confirm both dimension and application together.
Q1: What are standard steel pipe dimensions?
A1: Steel pipe dimensions typically include outside diameter, wall thickness, and length. Some standards also use schedule numbers to indicate thickness.
Q2: What is OD in pipe dimensions?
A2: OD stands for outside diameter, which is the main reference dimension used in steel pipe sizing.
Q3: What is pipe schedule?
A3: Pipe schedule refers to wall thickness classification, commonly expressed as SCH 10, SCH 40, or SCH 80.
Q4: Are all pipe sizes available in stock?
A4: Not all sizes are always available. Stock depends on production method, grade, and inventory.
Q5: What is the difference between seamless and welded pipe dimensions?
A5: Seamless pipes usually have tighter tolerance and are used in high-pressure applications, while welded pipes are commonly used for structural purposes.
Q6: Can steel pipes be customized?
A6: Yes, pipes can often be supplied with custom length, coating, and processing depending on order requirements.
