This page provides galvanized pipe sizes and standard GI pipe dimensions for construction, water systems, fencing, and outdoor structural applications. You can review common galvanized steel tube sizes including outside diameter, wall thickness, and length range.
For coating specifications and commercial supply details, please visit our galvanized steel tube product page.
Galvanized Pipe Dimensions Overview
Galvanized steel pipes are widely used in construction, water transmission, scaffolding, fencing, greenhouse systems, and outdoor structural projects due to their corrosion resistance and long service life. This page provides a practical galvanized pipe sizes chart covering common outside diameters, wall thicknesses, and standard dimension references used in global markets.
You can review standard GI pipe dimensions, understand pipe sizing methods, and compare commonly used specifications for different applications. For commercial product details, coating options, and export supply capability, please visit our galvanized steel tube product page.
For buyers comparing different pipe manufacturing methods, you may also review our ERW steel tube and seamless steel pipe resources.
Galvanized pipe dimensions are generally defined by:
Outside Diameter (OD)
Wall Thickness
Pipe Length
Schedule (SCH)
Zinc Coating Thickness
Most galvanized pipes are produced from welded steel pipes and then coated with zinc through hot-dip galvanizing or pre-galvanizing processes. Because galvanized pipes are often used in outdoor or humid environments, both dimension accuracy and coating quality are important factors.
In international projects, buyers may also compare galvanized pipe dimensions with broader steel pipe dimensions standards to ensure compatibility with fittings and engineering systems.
Industry Insight: At Tianjin Muchang, we often remind clients that for pipes 12 inches and under, the NPS is always smaller than the actual OD. For example, a “12-inch pipe” is actually 12.75 inches wide.

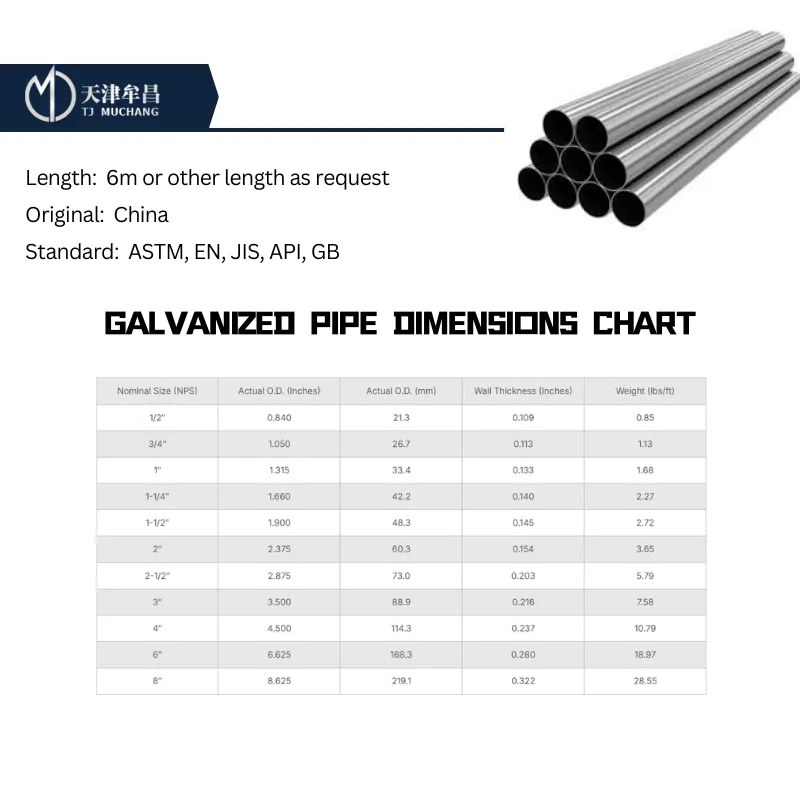

Below is the standard reference data for ASTM A53 / Schedule 40 pipes. This is the baseline for most commercial and industrial applications.
| Nominal Size (NPS) | Actual O.D. (Inches) | Actual O.D. (mm) | Wall Thickness (Inches) | Weight (lbs/ft) |
| 1/2″ | 0.840 | 21.3 | 0.109 | 0.85 |
| 3/4″ | 1.050 | 26.7 | 0.113 | 1.13 |
| 1″ | 1.315 | 33.4 | 0.133 | 1.68 |
| 1-1/4″ | 1.660 | 42.2 | 0.140 | 2.27 |
| 1-1/2″ | 1.900 | 48.3 | 0.145 | 2.72 |
| 2″ | 2.375 | 60.3 | 0.154 | 3.65 |
| 2-1/2″ | 2.875 | 73.0 | 0.203 | 5.79 |
| 3″ | 3.500 | 88.9 | 0.216 | 7.58 |
| 4″ | 4.500 | 114.3 | 0.237 | 10.79 |
| 6″ | 6.625 | 168.3 | 0.280 | 18.97 |
| 8″ | 8.625 | 219.1 | 0.322 | 28.55 |
Notes:
The galvanized pipe sizes above are provided for general dimension reference.
Actual wall thickness tolerance and zinc coating may vary according to production standard and application environment.
Available sizes may differ depending on mill production range and export destination.
If you need exact stock availability or project-based dimensions, please contact our galvanized pipe quotation team for confirmation.
Galvanized pipes are widely used in:
Water transmission systems
Outdoor construction projects
Scaffolding systems
Greenhouse structures
Agricultural irrigation
Fence and guardrail systems
Mechanical and structural fabrication
For structural applications requiring larger diameter and lower coating requirements, buyers may also compare products with our ERW steel tube solutions.
For pressure-related systems or high-temperature environments, some projects may prefer seamless steel pipe products depending on engineering requirements.
Pipe schedule refers to the wall thickness classification system used in steel pipe manufacturing. Common schedules for galvanized pipes include:
SCH 10
SCH 20
SCH 40
SCH 80
Higher schedule numbers generally indicate thicker pipe walls and greater pressure resistance.
Many buyers searching for galvanized pipe dimensions also need wall thickness comparison data. For broader thickness reference, you may also review our pipe thickness chart and pipe schedule chart resources.
How to Choose the Right Galvanized Pipe Size
Choosing the correct galvanized pipe size depends on several factors:
1. Application Environment
Outdoor and corrosive environments may require thicker zinc coating.
2. Pressure Requirement
Higher pressure systems may require thicker wall schedules.
3. Pipe Connection System
Dimension compatibility with fittings and valves is important.
4. Structural Requirement
Projects involving scaffolding or support structures may prioritize wall thickness and strength.
5. Standard Requirement
Different countries and projects may follow different dimensional standards.
For industrial sourcing projects, buyers are encouraged to confirm dimensions together with coating requirement, quantity, and destination port before placing orders with a galvanized steel pipe supplier.
Q1: What are standard galvanized pipe sizes?
A1: Standard galvanized pipe sizes are typically based on outside diameter, wall thickness, and nominal pipe size systems.
Q2: What is GI pipe?
A2: GI pipe means galvanized iron pipe or galvanized steel pipe coated with zinc for corrosion protection.
Q3: Are galvanized pipes seamless or welded?
A3: Most galvanized pipes are produced from welded steel pipes, although some seamless galvanized pipes are also available.
Q4: What is the difference between SCH 40 and SCH 80 galvanized pipe?
A4: SCH 80 pipes have thicker walls and generally provide higher pressure resistance than SCH 40 pipes.
Q5: Can galvanized pipes be customized?
A5: Yes. Pipe length, zinc coating thickness, and processing services can often be customized according to project requirements.
Q6: Are galvanized pipes suitable for outdoor use?
A6: Yes. Galvanized pipes are commonly used outdoors because zinc coating improves corrosion resistance.
